1.5 Watt DC12V 2835 Diode 45D Led Module Light for channel letter

Introduction:
1.DC12V 1 lens side edge module,ABS plastic cover IP65 waterproof, 30piece cooper cable, strong Conductivity,

2.light beam angle 10*45Degree, 9v 2835 leds high brightness leds used, 100 Lumen each led.

3.cool white &pure white& warm white color, 37mm*35mm*10mm size, suitable for side light box.

4.Thermal tape sticker, 1.5watt power.
  • HY-1LED-45D-1.5W

  • DC12V

  • 1.5w

  • white

  • IP67

  • 3years

  • 10*45Degree

Availability:
Quantity:


  •  1.5 Watt DC12V 2835 Diode 45D Led Module Light for channel letter

  • feature:

  • 1)select and use TOP quanlity 2835 led chip source, without spot, low light decay, good consistency for backlight  module

  • 2)Products with low power consumption, high brightness, long life, high power 1.5watt, maintenance-free

  • 3)The shell is made of injection molding technology, beautiful appearance,  good cooling effect

  • 4)IP67 waterproof rating up above, this is advantage specification.

  • 5)Low voltage input, safe and reliable(DC12V)

  • 6)Cold white/red/blue/green/yellow single color

  • 7)Module 20 units as a string, LED string and hybrid circuit using a single module can be cuted


  • Application scenario

  • 1)Advertising signs, illuminqted signs ,slim boxes, plastic characters. Etc


parameter:

voltage power module size light color light brightness beam angle waterproof warranty
DC12V 1.5Watt 35*40mm white color 200lumen 45Degree IP65 3 years

led drawing:

3W 设计1


connect suggestion:


接线图

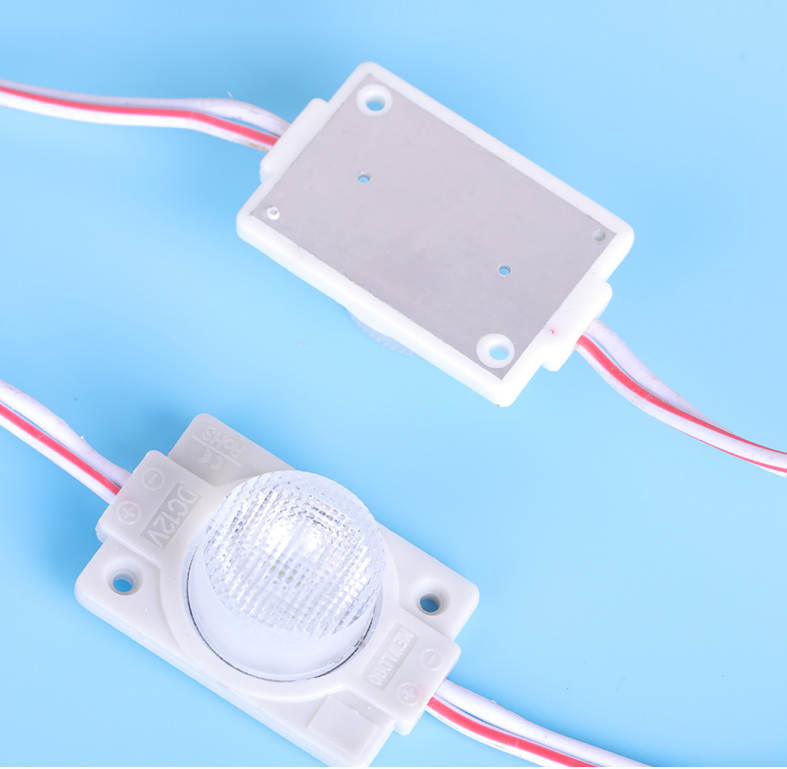

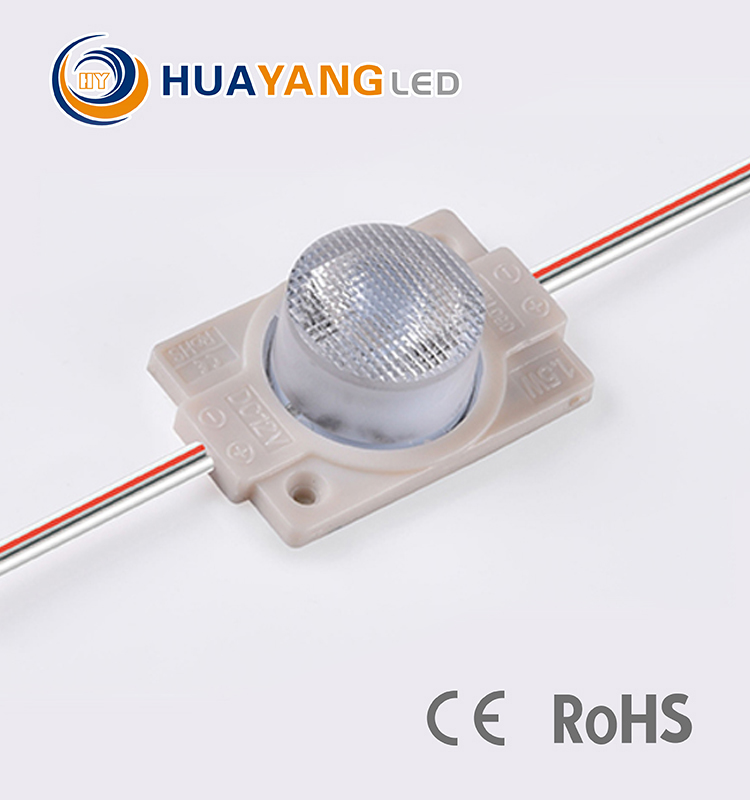

products picture:

9

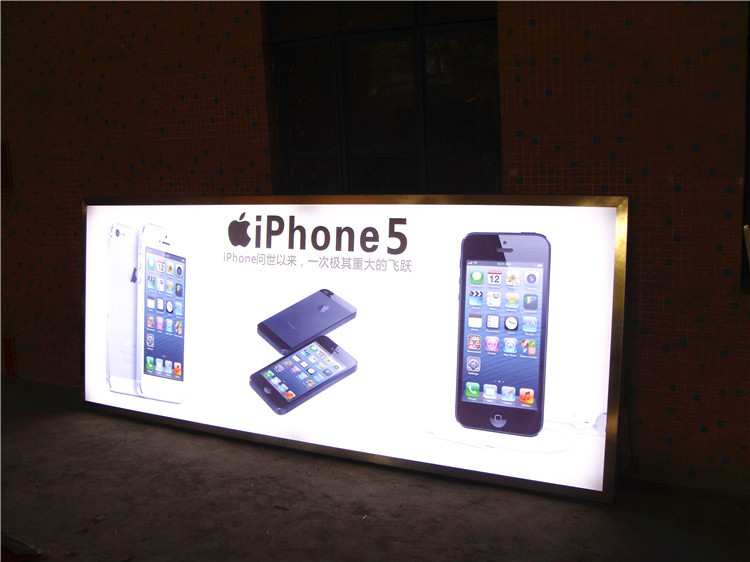

Scenario application:

灯箱广告牌


question&answers:


Q: Which led chips are used in this type module?

A: 60Lumen SMD 2835 used for this type


Q:What length of the cable for this type module?

A:normally 15cm length between two modules,  but we can make any length as clients request.


Q:How many quantities module in one string?

A:20Pcs in normally.  also can make the quantity as clients request, but biggest quantity is 50 pcs.


Q:How long can i get the sample?

A: need 3-5days to send sample.


Q: Do you have MOQ limit for order ?

A:Not limit the MOQ. just depend on clients demand.
