12v/24V RGB color Led Strip light used for adevrtising

intorduction:

1, waterproof RGB color DC12V, 14.4W strip. double sided PCB boards
2,60leds per meter, 5meters one roll
3,3leds cutted point, with 3 resistance
4,high brightness led chip RGB 5050 used
5,3M back sticker on it
  • HY-5050-RGB-60LED-ip20
  • DC12V
  • 14.4w
  • RGB
  • IP65 with epoxy resin
  • 3years
  • 120Degree
Quantity:

12v/24V RGB color Led  Strip light used for adevrtising


main feature:

[Length]: 5 meters

[Appearance size]: 5000mm*10mm*0.22mm

[Working voltage]: DC12V/24V

[Drive mode]: Constant voltage drive

[Lighting Angle]: 120 degrees

[Light source life]: 50,000 hours

 [Fixed method]: 3M glue

[Color]: Red, yellow, blue, green, white, full-color multiple luminous colors,

1. It can be bent at will and can be fixed on the uneven surface at will;

2. Every 3 LED lights can form a loop;

3. Small size and rich colors.

Characteristics

1. Every three LEDs can be arbitrarily cut off along the upper tangent line without damaging other parts.

2. It is composed of printed circuit board with 3M glue on the back for pasting.

3. Small size. There are many colors for customers to choose.

Scope of application

1. Used to light up all sides of transparent or non-transparent materials.

2. Used for path and outline signs, luminous signboards and other hotel KTV decorations, etc.

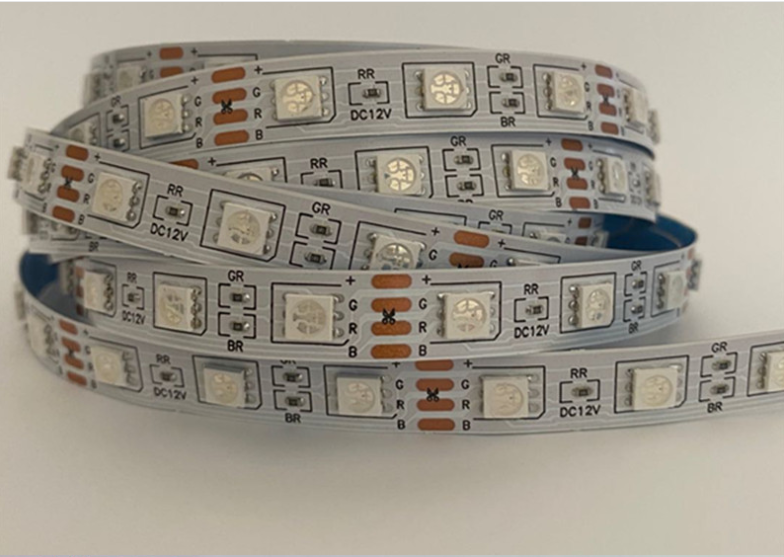

rgb 不防水大图


connect:

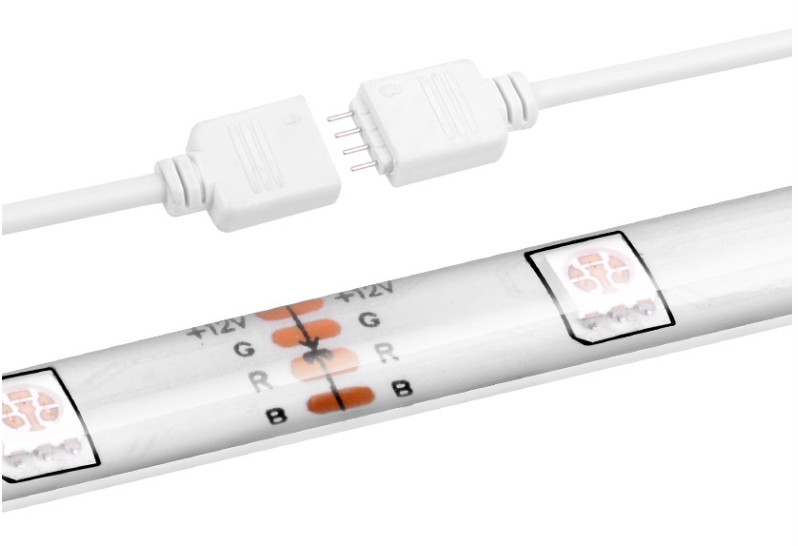

RGB CONNECT

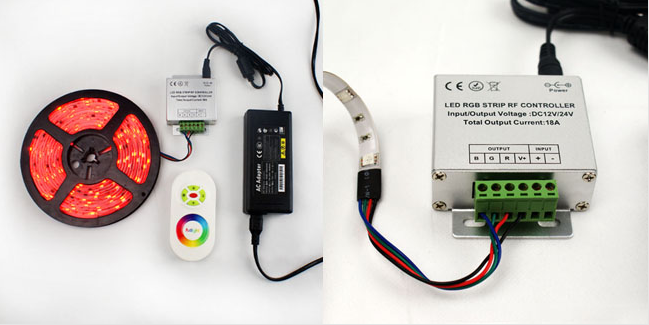

RGB 灯条接线图

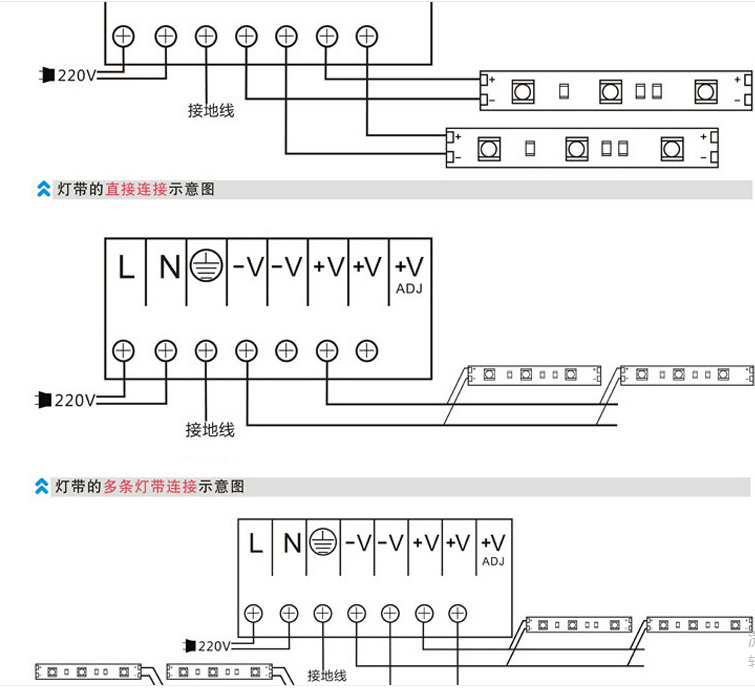

connect drawing:

灯条字符图接线

question&answers:


Q: Which led chips are used in this type module?

A: 22Lumen RGB SMD5050 used for this type


Q:What Controller used for this type strip?

A:normally IR contorller


Q:How many quantities module in one Roll?

A:5meters/15meters


Q:How long can i get the sample?

A: need 3-5days to send sample.


Q: Do you have MOQ limit for order ?

A:Not limit the MOQ. just depend on clients demand.
