170 Degree Beam Angle Led Module for Channel Letters


1.DC12V 1dot module,ABS plastic cover IP68 waterproof, 30piece cooper cable, strong Conductivity,
2,light beam angle 170Degree, 9v 2835 high brightness leds used, 60-65Lumen each led.
3.cool white and other colors, 12mm*7mm*2mm size, suitable for big light box.
4. 3M back tape sticker, 0.48watt power.
  • HY-1LED-2835-0.48W

  • DC12V

  • 0.48w

  • 170Degree

  • white/red/green/blue

  • IP68

  • 5years

  • 170Degree


  • Details of 170 Degree Beam Angle  Led Module for Channel Letters

  • feature:

  • 1)select and use TOP quality 2835led chip source, without spot, low light decay, good consistency for backlight  module

  • 2)Products with low power consumption, high brightness, long life,  power 0.6w, maintenance-free

  • 3)The shell is made of injection molding technology, beautiful appearance,  good cooling effect

  • 4)IP68 waterproof rating up above, this is advantage specification.

  • 5)Low voltage input, safe and reliable(DC12V)

  • 6)Cold white/red/blue/green/yellow single color

  • 7)Module 20 units as a string, LED string and hybrid circuit using a single module can be cuted

  • Application scenario

  • 1)Advertising signs, illuminqted signs ,slim boxes, plastic characters. Etc


voltage power module size light color light brightness beam angle waterproof warranty
DC12V 0.6Watt 12*7mm every single color 50lumen 170Degree IP68 5 years

  • led drawing:

  • 电子模线-灯4-1

  • 1灯设计

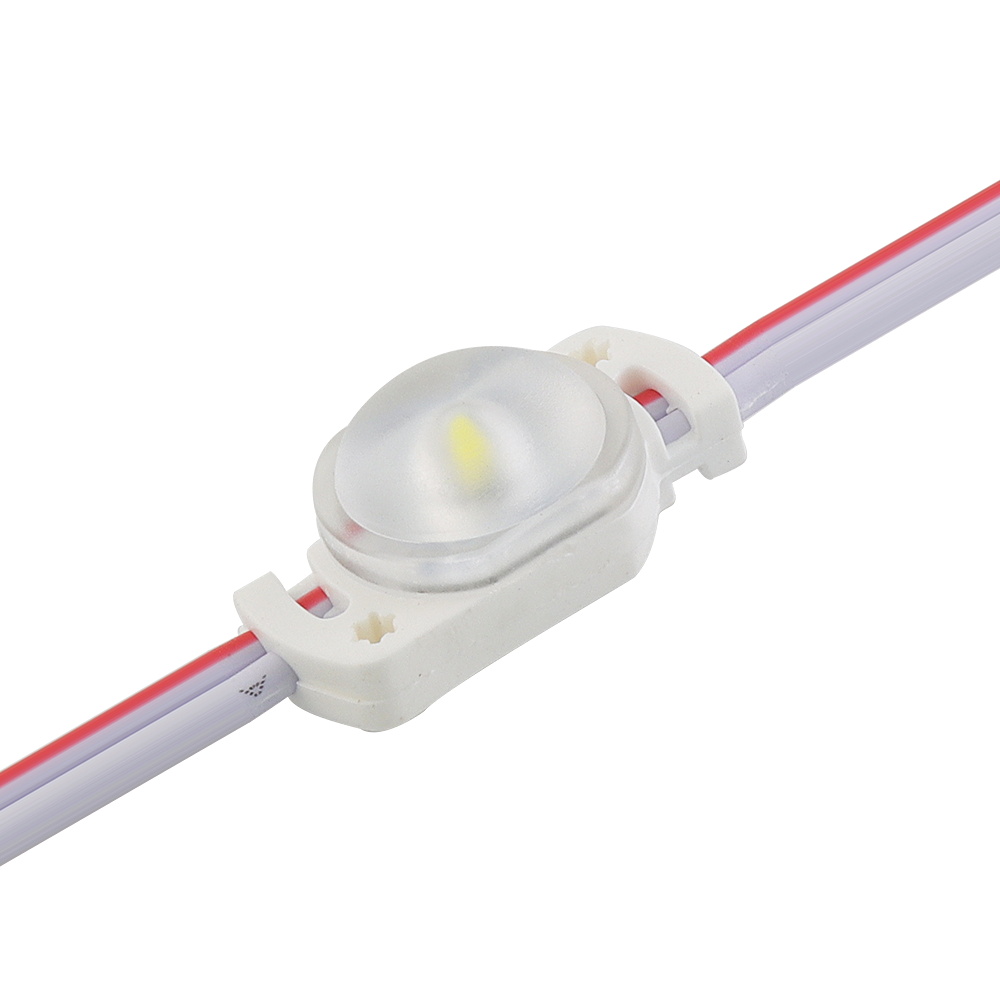

product picture:

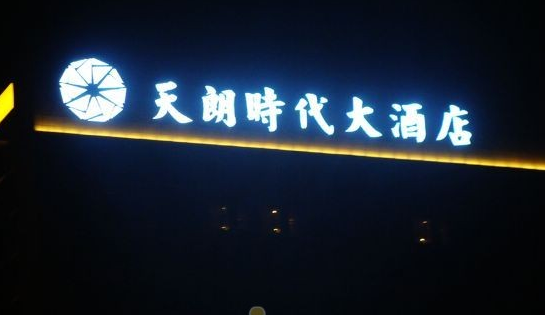

Scenario application:



Q: Which led chips are used in this type module?

A: 60Lumen 0.5W SMD 2835 used for this type

Q:What length of the cable for this type module?

A:normally 6cm length between two modules,  but we can make any length as clients request.

Q:How many quantities module in one string?

A:20Pcs & 50 pcs in normally.  also can make the quantity as clients request, but biggest quantity is 50 pcs.

Q:How long can i get the sample?

A: need 3-5days to send sample.

Q: Do you have MOQ limit for order ?

A:Not limit the MOQ. just depend on clients demand.
