HY-2835-220V led
AC220V
1.5W
160Degree
white/red/green/blue/yellow
IP65
3years
160Degree
| Quantity: | |
|---|---|

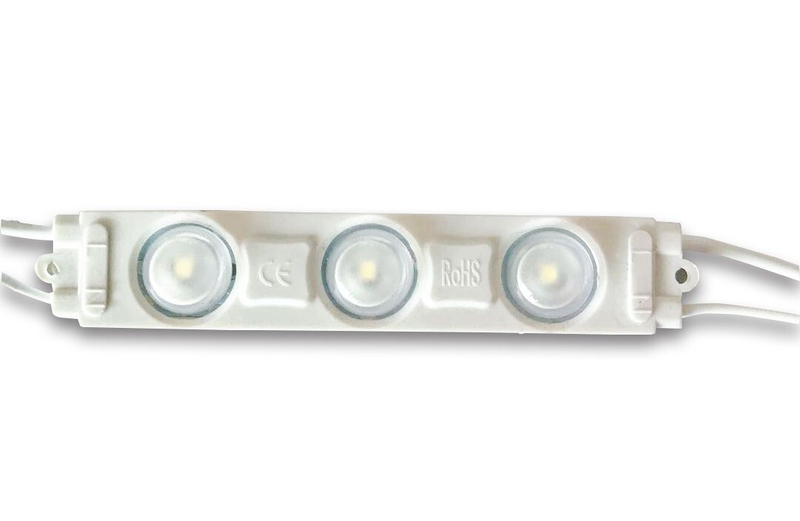

Details of AC220V Waterproof Cold White 3led 1.5Watt Lens Module
feature：
1）select and use TOP quanlity 2835led chip source, without spot, low light decay, good consistency for backlight module
2）Products with low power consumption, high brightness, long life, high power 1.5w, maintenance-free
3）The shell is made of injection molding technology, beautiful appearance, good cooling effect
4）IP68 waterproof rating up above, this is advantage specification.
5）High voltage AC220 input, save power supplier.
6)Cold white/red/blue/green/yellow single color

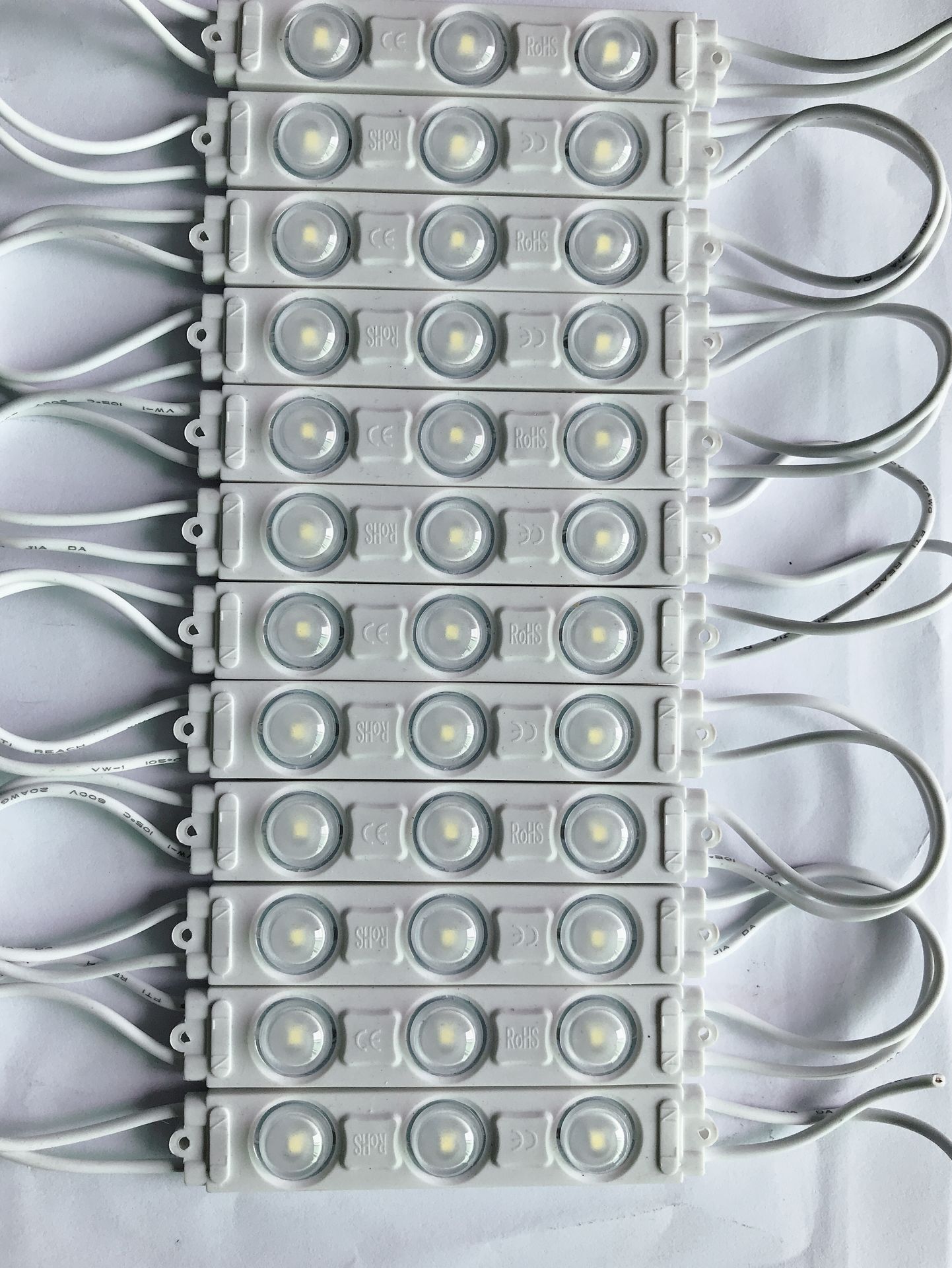

7）Module 20 units as a string, LED string and hybrid circuit using a single module can be cuted
Application scenario
1）Advertising signs, illuminqted signs ,slim boxes, plastic characters. Etc
| voltage | power | module size | light color | light brightness | beam angle | waterproof | warranty |
| AC220V | 1.5Watt | 72*18mm | every single color | 150lumen | 170Degree | IP65 | 3years |

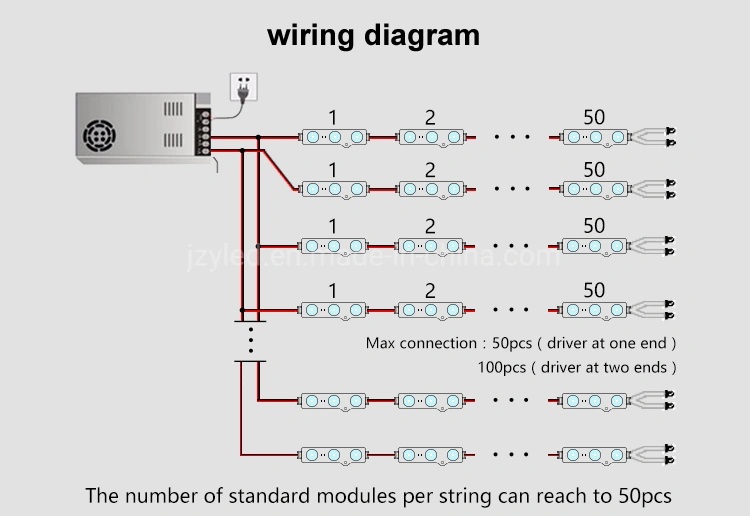

wire connect:
question&answers:
Q: Which led chips are used in this type module?
A: 60Lumen 0.5W SMD 2835 used for this type
Q:What length of the cable for this type module?
A:normally 10cm length between two modules, but we can make any length as clients request.
Q:How many quantities module in one string?
A:20Pcs in normally. also can make the quantity as clients request, but biggest quantity is 50 pcs.
Q:How long can i get the sample?
A: need 3-5days to send sample.
Q: Do you have MOQ limit for order ?
A:Not limit the MOQ. just depend on clients demand.
