HY-3LED-5054
DC12V
0.72W
120Degree
white/red/green/blue/yellow
IP65
3years
120Degree
Availability: | |
---|---|
Quantity: | |

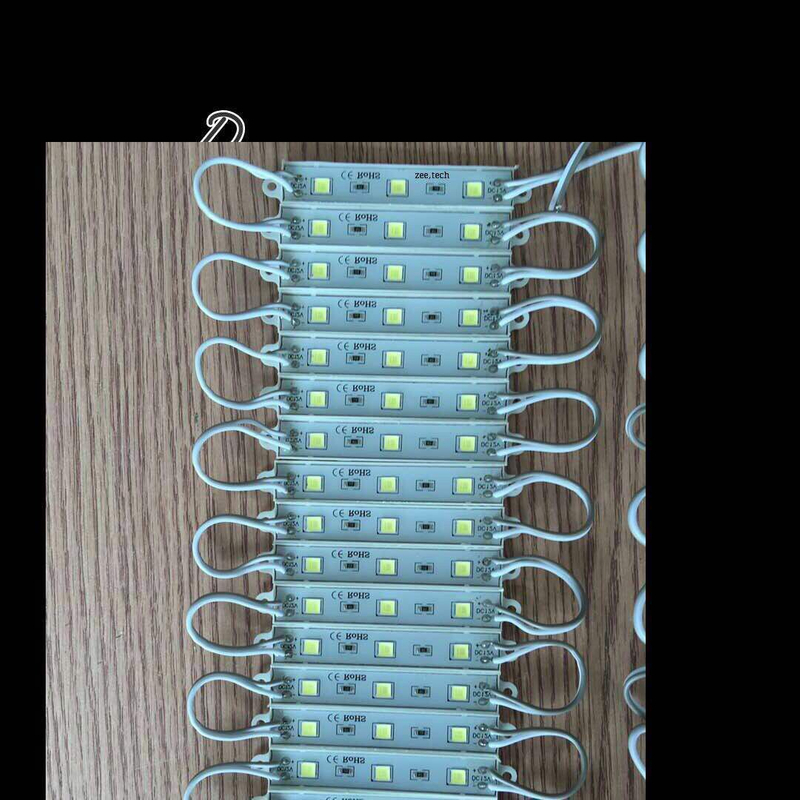

Details of DC12V Red White Green 5054 Led Module Light
feature:
1)select and use TOP quanlity 5054 led chip source, without spot, low light decay, good consistency for backlight module
2)Products with low power consumption, high brightness, long life, low power 0.72w, maintenance-free
3)The shell is made of injection molding technology, beautiful appearance, good cooling effect
4)IP65waterproof rating up above, this is advantage specification.
5)Low voltage input, safe and reliable(DC12V)
6)Cold white/red/blue/green/yellow single color
7)Module 20 units as a string, LED string and hybrid circuit using a single module can be cuted
Application scenario
1)Advertising signs, illuminqted signs ,slim boxes, plastic characters. Etc
wire connect:
parameters:
★Working current: 60mA,
★Power: 0.72W
★Brightness: 80-120LM
★Small luminous decay, high brightness, fast heat dissipation, zero luminous decay at 1000H; luminous decay less than 5% at 2000H.
★Theoretically, the angle is 180 degrees, but the actual angle is more than 150 degrees.
★Connecting wire: 1217 tinned copper wire, 1.85mm outer diameter,
★Cable length: 10cm.
★Installation matters: The power cord is connected to the loop, acid glass glue is strictly prohibited, and non-waterproof products should be protected against water.
question&answers:
Q: Which led chips are used in this type module?
A: 20Lumen SMD 5054 used for this type
Q:What length of the cable for this type module?
A:normally 8cm length between two modules, but we can make any length as clients request.
Q:How many quantities module in one string?
A:20Pcs & 50 pcs in normally. also can make the quantity as clients request, but biggest quantity is 50 pcs.
Q:How long can i get the sample?
A: need 3-5days to send sample.
