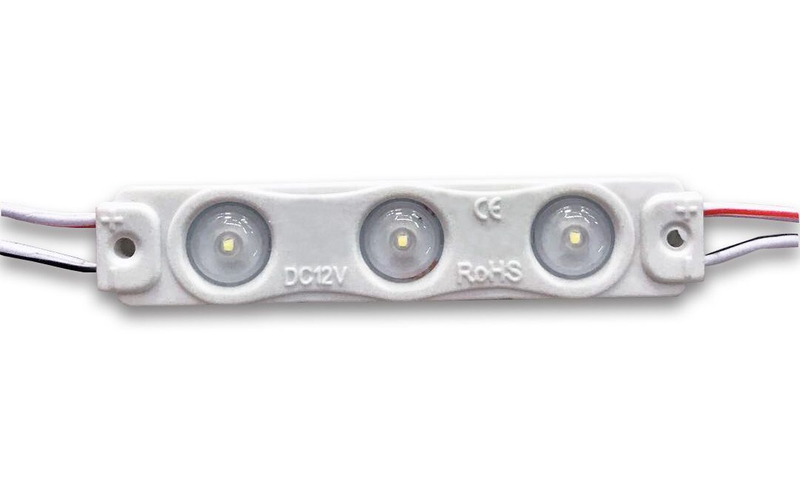

DC12V 2835 3led Small Light Box Led Module

1.DC12V 3lens module,Size:75*15mm, PVC plastic cover IP65 waterproof,
2. light beam angle 160Degree,
3.cool white and other colors, high brightness, suitable for big light box.
4.3M back tape sticker, 1.5watt power.
  • HY-3LED-2835lens
  • DC12V
  • 1.5W
  • 160Degree
  • white/red/green/blue/yellow
  • IP65
  • 3years
  • 160Degree
Quantity:
  • Details of DC12V 2835  3led Small Light Box Led Module

  • feature:

  • 1)select and use TOP quanlity 2835led chip source, without spot, low light decay, good consistency for backlight  module

  • 2)Products with low power consumption, high brightness, long life, high power 1.5w, maintenance-free

  • 3)The shell is made of injection molding technology, beautiful appearance,  good cooling effect

  • 4)IP68 waterproof rating up above, this is advantage specification.

  • 5)Low voltage input, safe and reliable(DC12V)

  • 6)Cold white/red/blue/green/yellow single color

  • 7)Module 20 units as a string, LED string and hybrid circuit using a single module can be cuted


  • Application scenario

  • 1)Advertising signs, illuminqted signs ,slim boxes, plastic characters. Etc


parameter:

voltage power module size light color light brightness beam angle waterproof warranty
DC12V 1.5Watt 65*18mm every single color 150lumen 160Degree IP65 3 years

led drawing:

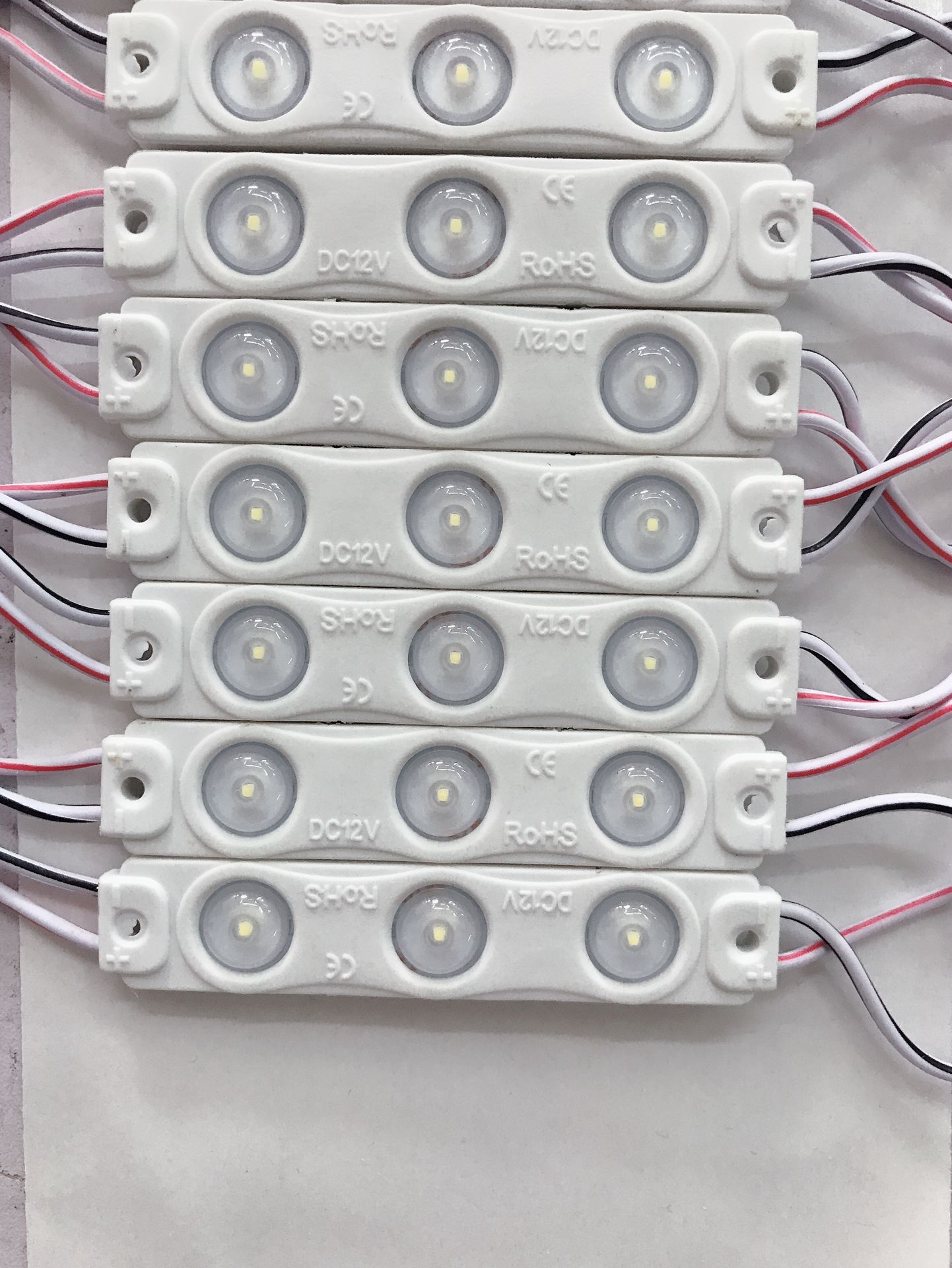

新款3灯模组2


wire connect:

接线图


question&answers:


Q: Which led chips are used in this type module?

A: 50Lumen 0.5W SMD 2835 used for this type


Q:What length of the cable for this type module?

A:normally 10cm length between two modules,  but we can make any length as clients request.


Q:How many quantities module in one string?

A:20Pcs & 50 pcs in normally.  also can make the quantity as clients request, but biggest quantity is 50 pcs.


Q:How long can i get the sample?

A: need 3-5days to send sample.


Q: Do you have MOQ limit for order ?

A:Not limit the MOQ. just depend on clients demand.
