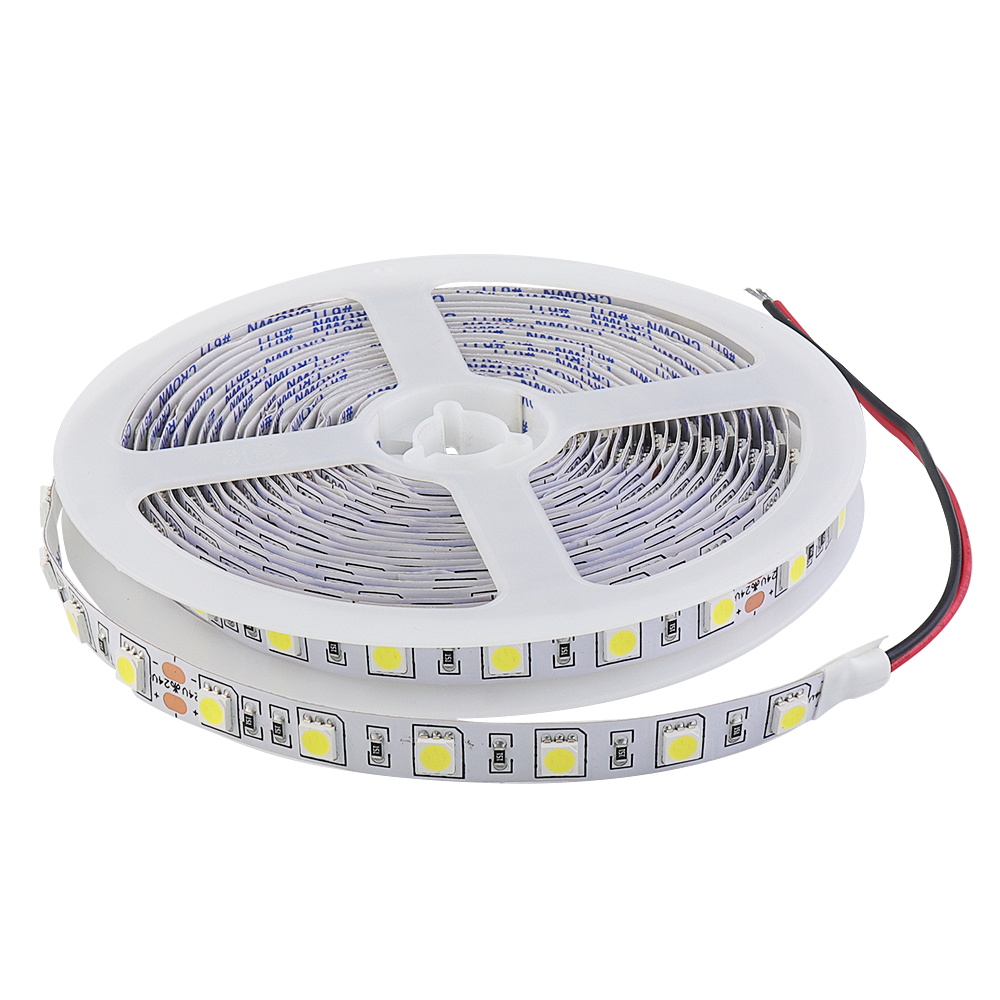

DC12V 5050 60leds 14.4watt Non Waterproof Led Strip Light

1,DC12V, 14.4W strip. double sided PCB boards
2,60leds per meter, 5meters one roll
3,3leds cutted point, with 3 resistance
4,high brightness led chip 5050 used
5,3M back sticker on it
  • HY-5050-60LED

  • DC12V

  • 14.4w

  • white/red/green/blue

  • IP20

  • 3years

  • 120Degree

  • DC12V 5050 60leds  14.4watt Non Waterproof Led Strip Light

  • select and use TOP5050led light source, without spot, low light decay, good consistency

  • Products with low power consumption, high brightness, long life, maintenance-free

  • use double side flexible PCB, beautiful appearance,  good cooling effect

  • IP20 waterproof rating up above

  • Low voltage input, safe and reliable(DC12V)

  • 5METERS/ROLL, 3leds one point can be cutted

  • Advertising signs, illuminqted signs ,slim boxes, plastic characters. Etc


1. Installation method of flexible light bar

1. Tear 3M glue

There is a self-adhesive 3M double-sided adhesive on the back of each LED flexible light bar, which can be torn off directly when installing, and then fix the light bar in the installation position and stick it tightly by hand.

2. Cut the length of the LED strip at will

As for some places that need to be turned or the length of the LED light bar is inconsistent. The circuit structure of the LED light bar is composed of 3 LEDs in series and parallel, and each 3 LEDs can be welded or cut at will.

3. Fixing of flexible light bar

If it is installed outdoors, it will be easily affected by the outside world, which will affect its use. Over time, the decrease of 3M adhesive will cause the LED light bar to fall off, so fix it with a card slot. The place that needs to be connected and cut is the same as the indoor installation method, only need to be equipped with waterproof glue to strengthen the waterproof effect of the connection point.

4. Power supply for flexible light bar

The general voltage of the LED flexible light bar is DC 12V, so a switching power supply is required. The size of the power supply is calculated according to the length and power of the LED flexible light bar. You can also buy a high-power switching power supply as the main power supply, and connect all the LED flexible light bar input power in parallel, and the main switching power supply is used to supply power.

5. Use amplifier for LED flexible light bar

If the connection distance of the LED light bar is long, and the controller cannot control that long light bar, it is necessary to use a power amplifier for tapping.

6. Power connection method of LED flexible light bar

LED light bars generally have three voltages: AC220V, DC12V, and DC24V, so you need to choose a suitable switching power supply. The size of the power supply is determined by the power and connection length of the LED light bar. Monochrome 3528 patch and 5050 patch, the wiring method of LED lights DC24V and DC12V is as follows: black wire replaces negative "-", red wire replaces positive "+", and a soldered "red and black" power cord is provided, Just plug it directly into the light strip switching power supply provided. The black wire is connected to the negative "-" of the switching power supply and the "red" color wire is connected to the positive "+" of the switching power supply.





Q: Which led chips are used in this type module?

A: 22Lumen  SMD5050 used for this type

Q:What Controller  for this type strip?

A:very single color

Q:How many quantities module in one Roll?


Q:How long can i get the sample?

A: need 3-5days to send sample.

Q: Do you have MOQ limit for order ?

A:Not limit the MOQ. just depend on clients demand.
