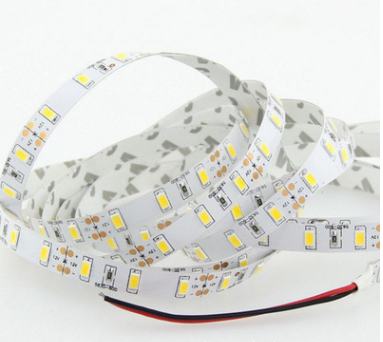

DC12V 6500k 3500k White/warm White Non-waterproof Led Strip

Introduction:

1.DC12V, 60leds strip 8w, no waterproof used for inside
2.5meters/roll or 50meters one roll as clinets request
3,use high brightness 22-24Lumen led
4,easy to installing
  • HY-5630-60LEDS
  • DC12V
  • 8w
  • white/red/green/blue
  • IP20
  • 3years
  • 120Degree
Quantity:

DC12V 6500k 3500k  White/warm White Non-waterproof Led Strip


main feature:

[Length]: 5 meters

[Appearance size]: 5000mm*10mm*0.22mm

 [Working voltage]: DC12V/24V

[Drive mode]: Constant voltage drive

[Lighting Angle]: 120 degrees

[Light source life]: 50,000 hours

[Fixed method]: 3M glue

[Color]: Red, yellow, blue, green, white,

1. It can be bent  and can be fixed on the uneven surface ;

2. Every 3 LED lights can form a loop;

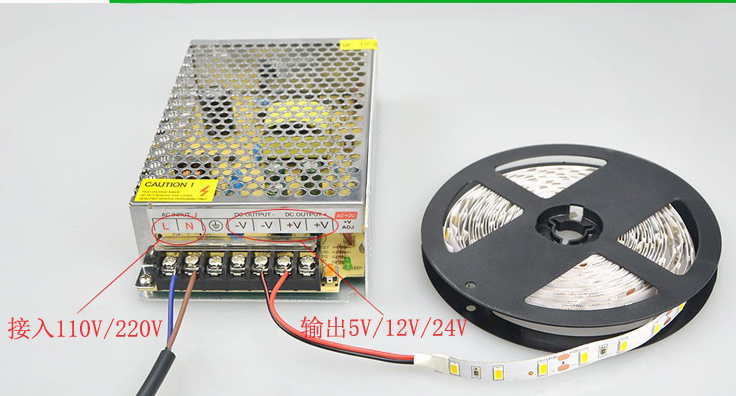

灯带连接方法


Characteristics:

1. Every three LEDs can be arbitrarily cut off along the upper tangent line without damaging other parts.

2. It is composed of printed circuit board with 3M glue on the back for pasting.

3. Small size. There are many colors for customers to choose.

Scope of application

1. Used to light up all sides of transparent or non-transparent materials.

2. Used for path and outline signs, luminous signboards and other hotel KTV decorations, etc.

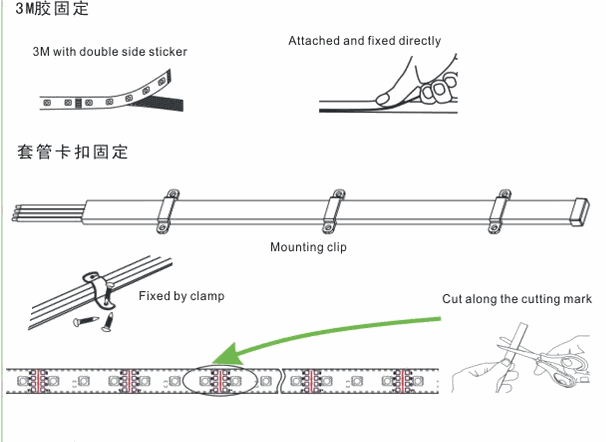

installing step:


英文版接线a

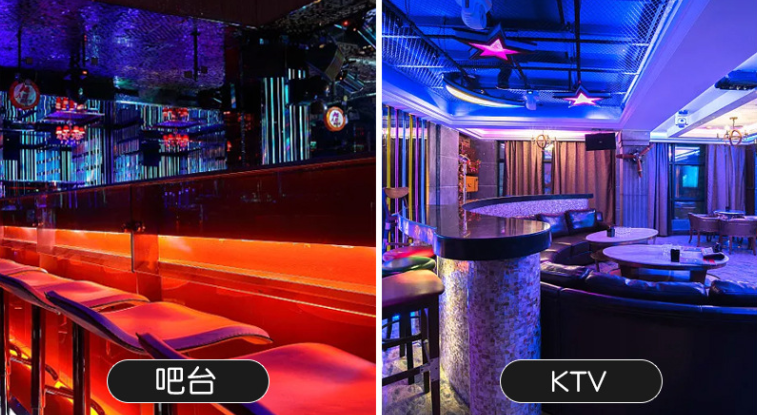

Application scenarios:

RGB 应用场景

question&answers:


Q: Which led chips are used in this type module?

A: 45Lumen  SMD5630 used for this type


Q:What Controller  for this type strip?

A:very single color


Q:How many quantities module in one Roll?

A:5meters/15meters/50meters


Q:How long can i get the sample?

A: need 3-5days to send sample.


Q: Do you have MOQ limit for order ?

A:Not limit the MOQ. just depend on clients demand.
