HY-2LED-2835lens-1W
DC12V
1w
white/red/green/blue
IP68
5years
170Degree
| Quantity: | |
|---|---|

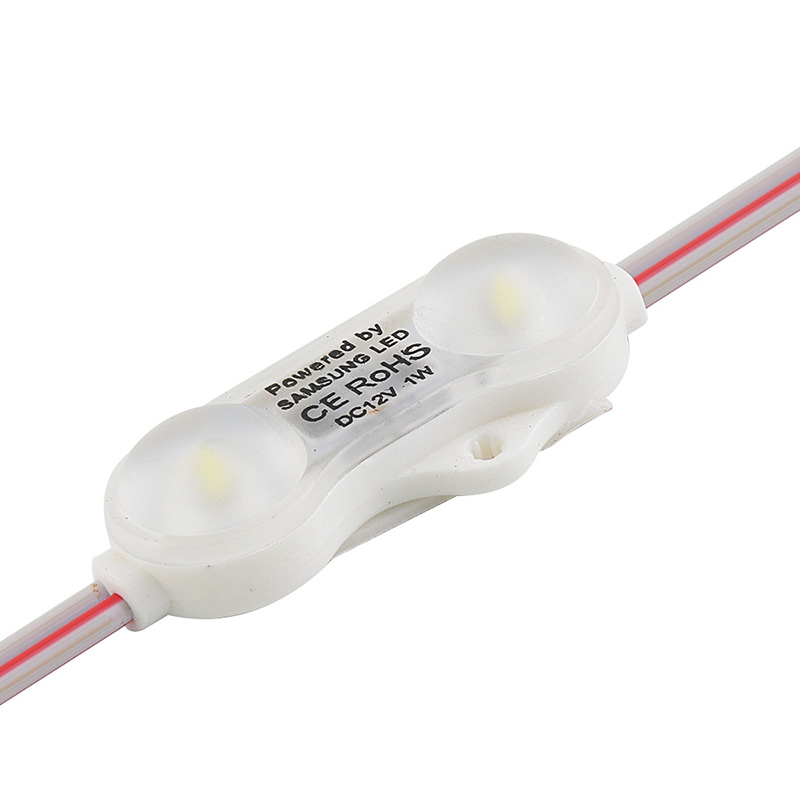

Details of DC12V for Signage Advertising Light LED Module
feature：
1）select and use TOP quanlity 2835led chip source, without spot, low light decay, good consistency for backlight module
2）Products with low power consumption, high brightness, long life, high power 1w, maintenance-free
3）The shell is made of injection molding technology, beautiful appearance, good cooling effect
4）IP68 waterproof rating up above, this is advantage specification.
5）Low voltage input, safe and reliable(DC12V)
6)Cold white/red/blue/green/yellow single color
7）Module 20 units as a string, LED string and hybrid circuit using a single module can be cuted
Application scenario
1）Advertising signs, illuminqted signs ,slim boxes, plastic characters. Etc
parameter：
| voltage | power | module size | light color | light brightness | beam angle | waterproof | warranty |
| DC12V | 1Watt | 45*12mm | every single color | 100lumen | 170Degree | IP68 | 5 years |
led drawing:
connect suggestion:
question&answers:
Q: Which led chips are used in this type module?
A: 60Lumen 0.5W SMD 2835 used for this type
Q:What length of the cable for this type module?
A:normally 7cm length between two modules, but we can make any length as clients request.
Q:How many quantities module in one string?
A:20Pcs & 50 pcs in normally. also can make the quantity as clients request, but biggest quantity is 50 pcs.
Q:How long can i get the sample?
A: need 3-5days to send sample.
questiones & answers
