​How to connect single color LED neon lights?

Views: 0     Author: Site Editor     Publish Time: 2021-09-10      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

The exquisite neon advertising colors not only enable the audience to understand the content of the advertisement, convey the information of the enterprise, and effectively achieve the purpose of advertising and promotion, but also give people a beautiful enjoyment in spirit. While meeting material needs, people also form people's aesthetic needs for colors. Beautiful colors make people pursue and yearn for. How to connect single color LED neon lights?


This passage is going to talk about the followings of connecting single color LED neon light:

Cutting LED neon lights

Connect power pin

Connect power cords, connectors and jumpers

Heat shrinks tube placement



Cutting LED neon lights

Locate the cut mark on the side of the single color LED neon light. This will be represented by the vertical dashed line. Use heavy-duty scissors or a utility knife to evenly cut the single color LED neon light on the mark. If you are not qualified, you may damage the product. A very sharp cutting blade must be used for straight cuts. The sharp blade helps you avoid pulling the internal wires of the single color LED neon light during cutting. Stretching or pulling on the wire may cause damage to the single color LED neon light or become unusable.

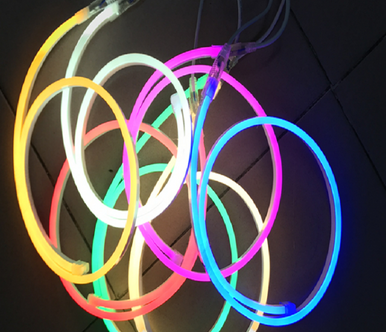

single color LED neon lights

Connect power pin

Adjust the position of the single color LED neon light so that when you look at the cut end, the two exposed wires are on your right. Using flat-nose pliers, place the power pin in the jaws of the pliers so that the sharp, barbed ends of the pins are facing outward.

Place the power plug so that the end of the plug is aligned with the center of the two bare wires on the single color LED neon light cutting surface.

Hold the Single color LED neon light with one hand and use the pliers with the other hand to push the power pin into the exposed wire of the Single color LED neon light with steady pressure until the transparent plastic clip in the middle of the power pin touches the flexible cutting end of the LED Neon.



Connect power cords, connectors and jumpers

Use a heat gun to slightly heat the molded female power connector until the plastic end is just malleable. Then place the power cord on the end of the single color LED neon light and align the round end of the power plug with the socket opening on the power cord. Now push the pin into the power cord until it fits snugly. If you want a more weather-resistant seal, please apply a continuous silicone sealant around the single color LED neon light before pushing the Single color LED neon light into the power cord assembly. Please refer to our outdoor installation instructions.

Follow the project requirements to connect the connector and/or jumper to the other end of the single color LED neon light using the same process as above. After completing the run, terminate the single color LED neon light by sliding the end cap on the cut end that is finally exposed.



Heat shrinks tube placement

The placement of heat shrink tubing can provide additional weather resistance at the single color LED neon light joint connection. Slide a piece of heat shrink tubing on each connection point. Place the pipes evenly on the connection area to cover the power cord. On all other connectors, place the shrink tube so that it extends approximately 1/8 inch near the end. After placing the heat shrinkable tube in the desired position, use a heat gun to shrink it to wrap the single color LED neon light connection point.

Note: Do not energize the LED neon light when the heat gun assembly is still hot.
