How to hang single color LED neon lights?

Views:0     Author:Site Editor     Publish Time: 2021-09-17      Origin:Site

The prosperity of the city is inseparable from the single color LED neon lights at night. Speaking of the night view of the city, the most attractive thing for photographers is probably the colorful neon on the street. How to hang bright neon lights? You have to pay attention to these few tips!

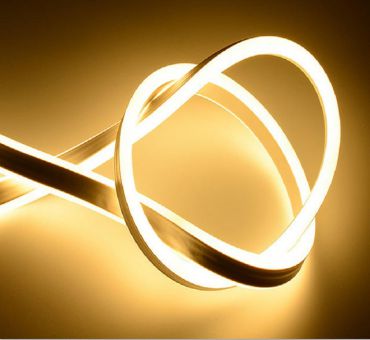

QQtupian20180512115136-640-640

(1) Installation points of lighting transformer

(2) What are the attentions when hanging single color LED neon light?

(3) Installation points of decorative lamps embedded in the ceiling



(1) Installation points of lighting transformer

Single color LED neon light transformer shell, iron core and either end of the low-voltage side or CITIC point should be grounded or connected to zero. The power supply side should have short-circuited protection, and the rated current of its fuse should not be greater than the rated current of the transformer.



(2) What are the attentions when hanging single color LED neon light?

Here are some things to pay attention to when hanging single color LED neon lights.

1. The distance between the secondary conductor of the neon lamp special unsafe voltage device and the surface of the building or structure should be greater than 2 cm.

2. The connecting wire between the secondary conductor of the neon lamp special transformer and the lamp tube should be high-voltage nylon insulated conductor rated more than 15 volts.

line

3. Before installation, check that the lamp tube is intact and undamaged.

4. The installation location of the neon lamp special transformer should be concealed, but it also needs to be convenient for maintenance. It is best not to install it in the ceiling.

This will make it difficult for maintenance personnel to find and repair the lamp.

5. The lamp tube should be fixed with a special insulating bracket, and it must be firm. The franchise bracket can be made of glass tube. Fixed lamp and building

The minimum distance between the surface of objects and structures should not be less than two inside

6. The length of the lamp tube provided by the neon lamp special transformer should be greater than the allowable load length

7. When mounted on the surface, the height of the lamp should not be less than three meters. If the height of the neon light is less than three meters, protective measures must be taken at this time.

Fan Hong lights are not damaged. Outdoor neon lights need to be installed with waterproof measures and ensured to be firm enough to prevent pedestrians from being injured.



(3) Installation points of decorative lamps embedded in the ceiling

Sometimes single color LED neon lights may be embedded in the ceiling. There are also some precautions at this time.

1. The decorative straight line of the ceiling surface should be parallel to the frame of the rectangular luminaire, and the deviation should be less than 0.5cm

2. For the open-type lamps and lanterns of fluorescent tube combination, the arrangement of the tubes should be neat, and the metal or the spacer of the material should not have defects such as distortion

3. The lamp should be fixed on a special frame, the wire should not be close to the lamp shell, and there should be a margin in the lamp box, and the frame of the lamp should be affixed to the ceiling.



Special lamps such as lanterns, single color LED neon lights, decorative lights, metal halide lamps, etc., are generally only installed in advertising or home furnishings. Because of their particularity, even experienced light shell installers may not be very Understand, so when choosing to install these lamps, you should pay more attention. Hope this article will help you.
