LED Module Light is one of the most widely used lighting solutions in modern signage, including channel letters, light boxes, billboard lighting, shop signs, and many other commercial advertising displays. Whether you are a sign maker, importer, wholesaler, contractor, or brand owner, choosing the right LED module system is critical for brightness, stability, energy efficiency, safety, and long-term maintenance cost.
When planning a signage lighting project, three practical questions come up again and again:
These questions sound simple, but they directly affect installation quality and sign performance. The wrong power supply can shorten the lifespan of the modules. The wrong quantity calculation can cause dark spots, uneven illumination, or wasted product cost. The wrong dimming setup can result in flickering, unstable light output, or system failure.
In this complete guide, we will answer all three questions in detail and expand into the engineering logic behind them. We will also explain the most important selection factors for LED Module Light products used in advertising signs and illuminated letters.
At Shenzhen Huayang Lighting Technology Co., Ltd., founded in 2012, we specialize in LED advertising light sources, including LED modules, LED strip lights, and LED neon products. We focus on product development, innovation, quality control, and customized production. Our products are used in many markets around the world, and many of them are designed for signage applications that require high brightness, stable LED chips, waterproof protection, and long service life. With CE and RoHS certified products and more than 3 years of product guarantee on many items, we support customers looking for reliable LED lighting solutions for commercial projects.
Before answering the three main questions, it is helpful to understand why LED Module Light is so important in signage.
Compared with traditional lighting solutions, LED modules offer several practical benefits:
For sign makers, one of the biggest advantages of LED modules is that they can be arranged according to the sign structure instead of forcing the sign structure to adapt to the light source. This matters in projects such as:
Good LED Module Light design is not just about making a sign bright. It is about producing uniform brightness, avoiding visible hotspots, improving waterproof reliability, and reducing labor during installation and future replacement.
For 12V LED modules, use a constant voltage 12V LED power supply. For 24V LED modules, use a constant voltage 24V LED power supply. The power supply should have enough wattage to support the total load of all modules, plus a safety margin of about 20% to 30%.
Most signage LED modules are designed as constant voltage systems. That means the LED module itself is built to operate at a fixed input voltage, usually DC12V or DC24V.
This is very important:
You should not mix them. A 12V module connected to 24V may burn out quickly or fail immediately. A 24V module connected to 12V will usually be underpowered and may not light properly.
In signage projects, constant voltage systems are preferred because they are easier to design, easier to wire, and easier to expand than many constant current solutions.
For most sign lighting applications, the best choice is a:
This type of driver is widely used for:
A suitable LED power supply should ideally have these characteristics:

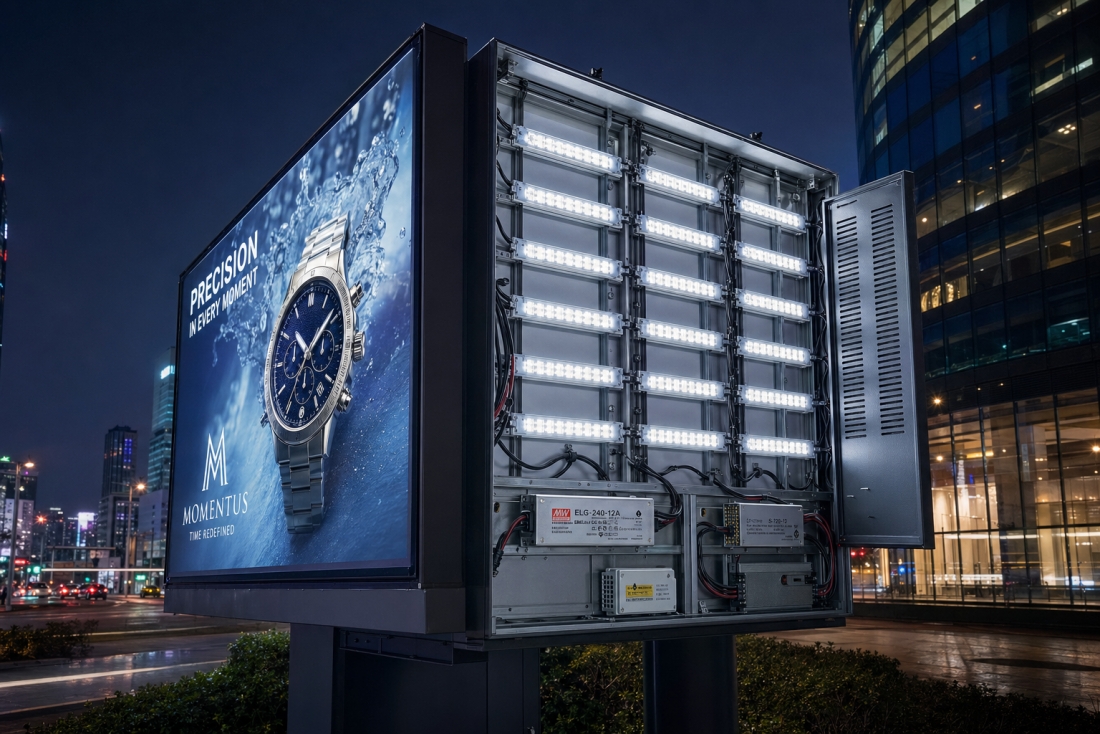

For outdoor signage, many buyers choose waterproof LED power supplies with an IP-rated enclosure, especially when the power supply may be exposed to rain, dust, or temperature changes.
To select the correct power supply size, follow this simple formula:
Total module wattage = Number of modules × Wattage per module
Then add a 20% to 30% reserve capacity.
Recommended power supply wattage = Total module wattage × 1.2 to 1.3
This extra capacity helps in several ways:
Let’s say you are using:
100 × 1.5W = 150W
150W × 1.2 = 180W
So the recommended power supply would be:
If the installation is large, many installers prefer to split the system into multiple power supplies rather than use one oversized supply. This can improve wiring stability and simplify maintenance.
Suppose a project uses:
160 × 0.72W = 115.2W
115.2W × 1.25 = 144W
Recommended choice:
Sometimes installers also want to know the current draw.
Current (A) = Power (W) ÷ Voltage (V)
If total system wattage is 150W on a 12V system:
150 ÷ 12 = 12.5A
This means the system draws approximately 12.5 amps.
For a 24V system with the same wattage:
150 ÷ 24 = 6.25A
This is one reason why 24V systems are often useful for larger installations: they reduce current, which can help reduce voltage drop and improve long-distance wiring performance.
Both are common, but each has advantages.
| Factor | 12V LED Module Light | 24V LED Module Light |
|---|---|---|
| Compatibility | Very common in signage | Also common, especially larger systems |
| Power supply availability | Very easy to source | Also widely available |
| Cutting and grouping flexibility | Often very flexible | Good, depending on module design |
| Current at same wattage | Higher | Lower |
| Voltage drop over distance | More noticeable | Less noticeable |
| Best for | Small to medium signs | Medium to large signs |
| Wiring runs | Shorter recommended | Better for longer runs |
Choosing a power supply sounds easy, but several mistakes happen often:
A 12V module must use 12V. A 24V module must use 24V.
Running a power supply at 100% load continuously can reduce reliability.
Outdoor sign systems need outdoor-rated power supplies or protected installation boxes.
Even if total wattage is correct, poor wiring design can cause uneven brightness.
A cheap power supply may cause flicker, unstable output, heat buildup, and early failure.
To calculate how many LED Module Light units a sign needs, you must consider:
In practice, the number of modules is usually estimated by layout spacing and then confirmed through a lighting test or sample arrangement.
Many buyers ask for a simple answer like: “How many modules per square meter?” While this can be a useful starting point, the real answer depends on the sign structure.
Two signs with the same face area may need very different quantities if they have different:
For example:
So the correct approach is not “guess by area only,” but “calculate by structure + light distribution.”
This includes length, width, and depth.
Different sign types need different layouts:
A 160° to 170° lens can spread light wider, reducing module quantity in some projects.
Higher lumen modules may allow wider spacing.
Acrylic, PVC, fabric, and diffusers behave differently.
A premium storefront sign may need stronger and more uniform lighting than a temporary sign.
Shallow signs usually require more careful spacing to avoid hotspots.
Here is a practical field method used in many signage projects.
Record:
Know:
Use a typical center-to-center spacing based on module type and sign depth.
Draw rows and columns for flat signs, or path-based placement for channel letters.
Total number = modules per row × number of rows
For important projects, always test a sample section before final production.
The table below gives a practical planning reference. Final results should still be tested based on material and sign depth.
| Application | Typical Sign Depth | Common Beam Angle | Approximate Module Spacing | Notes |
|---|---|---|---|---|
| Slim channel letters | 20-40 mm | Wide angle | Tight spacing | Mini modules often required |
| Standard channel letters | 40-100 mm | 160°-170° | Medium spacing | Very common LED Module Light use |
| Light boxes | 60-150 mm | Wide angle lens | Medium to wide spacing | Depends on face diffusion |
| Deep sign cabinets | 100 mm+ | Wide angle | Wider spacing possible | Fewer modules may be needed |
| Billboard sign panels | Large format | Wide angle | Project-dependent | Layout should focus on uniformity |
Suppose you have a light box with these dimensions:
And your chosen module uses:
2000 ÷ 150 ≈ 13.3
Round up to 14 modules per row
1000 ÷ 150 ≈ 6.7
Round up to 7 rows
14 × 7 = 98 modules
This is a rough starting estimate. In a real project, the final quantity may be adjusted after checking brightness uniformity and edge performance.
Channel letters are more complex because they do not use a simple rectangular grid. Instead, the quantity depends on:
A practical method is:
For thin letters, mini modules are often necessary. For larger letters, 3-LED lens modules may reduce quantity while improving evenness.
| Sign Type | Recommended Module Type | Why |
|---|---|---|
| Thin letter signs | Mini LED Module Light | Fits narrow strokes and shallow cavities |
| Outdoor channel letters | Waterproof wide-angle module | Better durability and even light |
| Large advertising light boxes | 3-LED lens module | Better coverage and brightness |
| Backlit logo signs | LED Backlight Module | More uniform rear illumination |
| Billboard signs | High brightness LED Signage Module | Strong output for large visible areas |
The goal is not the highest module count. The goal is the best balance between brightness, uniformity, energy use, and cost.
Yes, many LED Module Light products are dimmable, but only if they are used with the correct dimming method, compatible power supply, and suitable controller.
A dimmable LED module system allows you to reduce or adjust brightness instead of operating only at full power. This can be useful for:
However, not all LED modules can be dimmed in the same way. The dimming result depends on the module design and the power/control system.
PWM means Pulse Width Modulation. This is one of the most common methods for low-voltage LED systems.
Benefits:
Some systems dim through the low-voltage side using a compatible dimmer.
Advanced systems can integrate:
The correct solution depends on the commercial project and control requirement.
To dim LED modules successfully, you usually need:
In many sign systems, the issue is not the module itself, but the mismatch between the module, power supply, and dimmer.
Flicker usually happens because of one of these reasons:
For professional signage, flicker is more than an electrical issue. It affects brand image, customer experience, and perceived quality of the sign.
Not always. Many outdoor signs operate at fixed brightness. But dimming can be valuable in these situations:
If the sign only needs stable full-output lighting, a non-dimming system may be more cost-effective and simpler. But if brightness control is important, the LED Module Light system should be planned for dimming from the start.
When choosing LED modules for a sign project, review the following:
| Selection Factor | Why It Matters |
|---|---|
| Voltage: 12V or 24V | Must match the power supply |
| Module wattage | Determines total power requirement |
| Brightness | Affects illumination level |
| Beam angle | Affects spacing and uniformity |
| Waterproof rating | Important for outdoor use |
| Module size | Critical for thin letters or compact signs |
| LED chip stability | Affects consistency and lifespan |
| Warranty | Reduces project risk |
| Certification | Important for compliance and trust |
| Dimming compatibility | Needed for adjustable brightness projects |
At Shenzhen Huayang Lighting Technology Co., Ltd., we have focused on LED advertising light sources since 2012. Our product range includes LED modules, LED strip lights, flexible LED strip products, and LED neon solutions for signage and decorative lighting.
Based on the company information and product direction, our strengths include:
We also participate in professional LED exhibitions and work closely with customers in different markets to improve products for signage, light boxes, modules with lenses, waterproof outdoor modules, LED strips, and neon lighting solutions.
For buyers, this matters because a good LED Module Light supplier should not only sell products, but also help reduce project risk by supporting technical matching, product consistency, and customization.
Yes. It is normal and recommended to use a power supply with extra capacity, typically 20% to 30% above the calculated load. The important thing is that the voltage must match the LED module system.
No. This can damage the modules or cause immediate failure. Always match 12V modules with 12V power supplies and 24V modules with 24V power supplies.
There is no universal number. It depends on sign depth, module brightness, beam angle, face material, and required uniformity. Area is only a starting point, not a final answer.
In many signage applications, yes. LED Module Light products are often better for channel letters because they offer better spacing flexibility, better waterproof designs, and often better light distribution for sign cavities.
No. Many can be dimmed, but only with compatible dimming systems, controllers, and power supplies. Compatibility should always be confirmed before project installation.
For larger signs or longer wire runs, 24V can be advantageous because it reduces current and helps reduce voltage drop. For many standard signs, 12V is still very common and practical.
Both matter. Wattage affects energy use and power supply planning, while lumen output affects brightness. For sign lighting, you must consider both together with beam angle and sign depth.
Hotspots can happen because of poor module spacing, insufficient sign depth, wrong beam angle, low diffusion, or incorrect module orientation. A sample lighting test can help prevent this.
A successful LED Module Light project is not just about buying modules and wiring them into a sign. It requires correct power supply matching, accurate quantity planning, and proper understanding of dimming compatibility. These three steps have a direct effect on sign brightness, reliability, lifespan, visual quality, and maintenance cost.
If you remember only the essentials, remember these:
For channel letters, light boxes, billboard signs, and advertising displays, choosing the right LED system at the beginning is always more cost-effective than fixing problems after installation.
