LED Module Light: A Complete Guide to Definition, Working Principle, Differences, and Types
LED Module Light is one of the most important lighting products used in modern signage, advertising displays, channel letters, light boxes, and many commercial illumination projects. For importers, sign makers, wholesalers, project contractors, and brand owners, understanding how an LED Module Light works is essential when selecting the right lighting solution for performance, durability, waterproof reliability, and cost efficiency.
As the demand for energy-saving and long-lasting advertising lighting continues to grow, more buyers are comparing single LEDs, LED modules, LED strips, and neon lighting products to determine which option best fits their projects. In many commercial applications, especially in illuminated signs and outdoor branding, the LED Module Light provides a practical balance of brightness, modular installation, optical control, and maintenance convenience.
Shenzhen Huayang Lighting Technology Co., Ltd., founded in 2012, specializes in the production of LED advertising light sources, including LED modules, LED strip light, and LED neon products. Based in Shenzhen, Guangdong Province, Huayang Lighting focuses on product development, innovation, quality, and service. Its product range includes outside injection LED module with lens, flexible LED strip, LED neon plastic injection modules, and other lighting solutions designed for commercial and signage applications. According to the company introduction, Huayang products are guaranteed for more than 3 years, use high-brightness LED chips with good stability, and are sold worldwide. The company also emphasizes pre-sales quality inspection, after-sales support, customization, and certifications such as CE and RoHS.
In this complete guide, we will answer the most common questions buyers ask about LED Module Light, including what it is, how it differs from a single LED, how it works, and what types are available. We will also expand on practical application knowledge to help readers make better sourcing and project decisions.
What is an LED module light?
An LED Module Light is a compact lighting unit that integrates one or more LED chips with a circuit structure, wiring, and a protective housing into a ready-to-install module. Instead of using a single bare LED chip on its own, an LED module packages the light source into a functional product that can be directly used in signage, cabinets, channel letters, display boxes, and other lighting systems.
In simple terms, an LED module is more than just a light-emitting point. It is a complete lighting component designed for practical use.

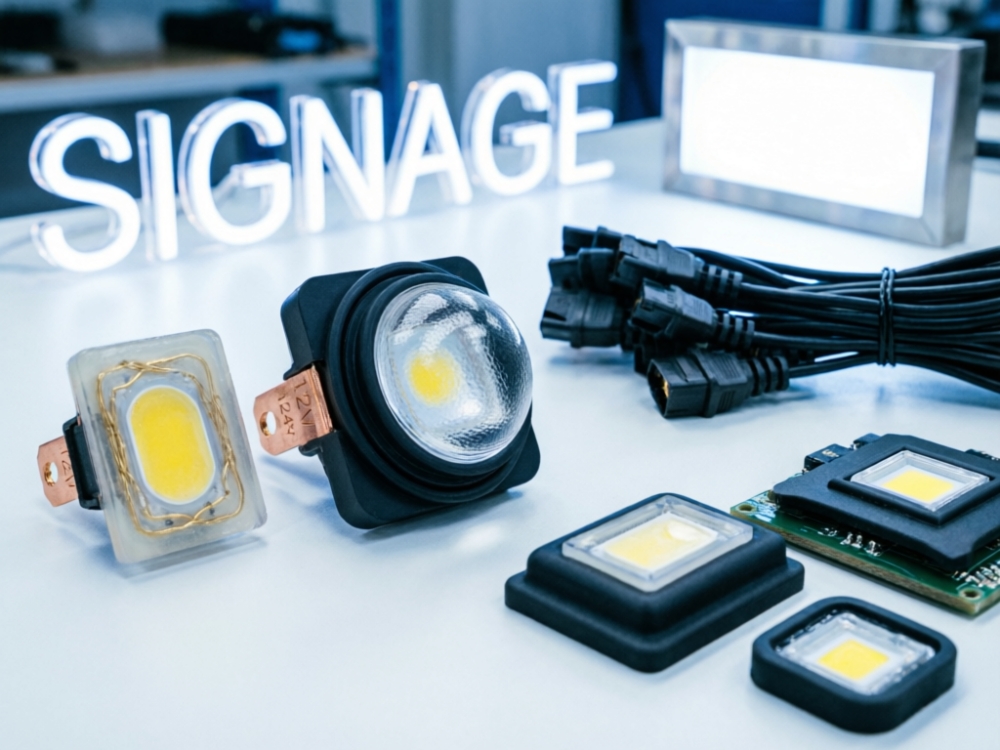

A typical LED Module Light may include:
- One or more LED chips
- A printed circuit board or internal conductive structure
- Electrical wiring for connection
- A protective casing such as ABS or injection-molded housing
- Waterproof sealing such as epoxy or molded encapsulation
- Optional optical lens for wider beam angle and more even illumination
- Adhesive backing and/or screw holes for installation
This modular structure is especially important in advertising and signage lighting because signs often have irregular shapes, narrow strokes, curved lines, and outdoor installation requirements. A single LED on its own cannot easily solve those problems, but an LED module can.
Why LED Module Light is widely used
The popularity of LED Module Light comes from its practical advantages in real-world installations:
- Easy to install in complex shapes
- Better waterproofing for outdoor use
- Easier maintenance than many continuous lighting systems
- Good brightness stability
- Better control of module spacing
- Suitable for channel letters and light boxes
- Wide-angle lens options reduce hotspots
- Strong compatibility with 12V and 24V systems
For example, in channel letter signs, each module can be placed individually inside the letter cavity. This allows installers to adjust spacing and direction based on the depth, width, and shape of the sign. This flexibility is one of the key reasons why LED Module Light is preferred in sign manufacturing.
Common applications of LED Module Light
A high-quality LED Module Light is commonly used in:
- Channel letters
- Outdoor illuminated signs
- Advertising sign boxes
- Backlit logos
- Light boxes
- Shopfront signage
- Retail branding displays
- Cabinet signs
- Decorative commercial installations
At Huayang Lighting, the company focuses on LED advertising light sources and offers product categories including LED module lights, LED strips, and LED neon. Its outside injection LED module with lens is especially relevant for customers who need reliable outdoor signage lighting.
What is the difference between an LED and an LED module?
This is one of the most frequently asked questions in lighting and signage procurement. Although the terms are related, an LED and an LED module are not the same thing.
A single LED is a light-emitting component
An LED, or light-emitting diode, is the semiconductor device that produces light when electrical current passes through it. It is the fundamental light source itself. A single LED chip is a component, not a complete commercial lighting unit.
By itself, a single LED typically requires:
- A circuit board or mounting base
- Current regulation
- Heat management
- Wiring
- Protection from dust, water, and impact
- Additional optical or structural support
A bare LED is therefore a building block, not the final application product.
An LED module is a complete lighting unit
An LED Module Light, by contrast, is an assembled product that uses one or more LEDs together with housing, wiring, and sometimes lenses and waterproof protection. It is designed for direct installation in actual projects.
This means an LED module provides:
- Easier use in commercial projects
- Better physical protection
- Faster installation
- Standardized electrical connection
- More reliable operation in demanding environments
Quick comparison table: LED vs. LED Module Light
| Feature | Single LED | LED Module Light |
|---|---|---|
| Basic definition | A light-emitting diode component | A complete lighting unit containing one or more LEDs |
| Structure | Bare chip or packaged diode | LED + circuit + housing + wire + protection |
| Installation | Requires additional engineering | Ready for direct installation |
| Waterproofing | Usually none by itself | Often IP65, IP67, or IP68 options available |
| Application | Electronics, lamp manufacturing, PCB design | Signage, light boxes, channel letters, displays |
| Maintenance | Not practical as a standalone field unit | Easier to replace module by module |
| Optical control | Limited by itself | Can include lenses for beam shaping |
| Commercial usability | Low | High |
Why this difference matters for buyers
For project buyers, sign makers, and importers, choosing between a single LED and an LED Module Light is usually not really a question of which emits light better. The real issue is which product is built for the intended use.
If you are manufacturing lighting equipment from scratch, a single LED may be relevant. But if you are building signs, cabinets, or commercial lighting systems, the LED Module Light is usually the practical product because it reduces engineering complexity and improves installation efficiency.
In short:
- A single LED is a component.
- An LED Module Light is a usable lighting solution.
How do LED modules work?
To understand why an LED Module Light performs so well in signage and display projects, it helps to understand its working principle.
Basic working principle of LED modules
An LED Module Light works by converting electrical energy into light through one or more LED chips mounted within the module. When the correct voltage and current are applied, the LED chips emit light. The module’s internal design helps manage power distribution, electrical connection, and in some cases light distribution.
The basic process is as follows:
- Electrical power is supplied from a compatible LED power supply or driver.
- The current flows through the wiring into each LED module.
- The internal circuit feeds the LED chips according to the module’s design.
- The LED chips emit light.
- If the module includes a lens, the light is spread over a wider angle.
- The housing protects the internal components from environmental conditions.
Main elements that make LED modules function
A typical LED Module Light works because several parts operate together:
1. LED chips
These are the actual light sources. High-brightness, stable LED chips are important for luminous efficiency, color consistency, and service life.
2. Circuit structure
The circuit helps distribute the power correctly inside the module. Depending on the design, the module may be configured for constant voltage or constant current operation.
3. Wiring connection
The wires between modules allow multiple units to be connected in sequence while maintaining flexible installation.
4. Housing and encapsulation
The housing protects the LED chips and circuit from dust, moisture, vibration, and impact. Outdoor modules often use injection-molded ABS housing or epoxy sealing.
5. Optical lens
Many signage modules use optical lenses to widen the beam angle, such as 160° or 170°. This helps reduce hotspots and improve face illumination in shallow sign boxes.
Power input and voltage systems
Most LED Module Light products are designed for low-voltage DC systems, commonly:
- DC12V
- DC24V
These low-voltage systems are widely used because they are safer and easier to integrate in signage projects. The power supply converts standard input electricity into the proper DC voltage for the modules.
How LED modules achieve even lighting
Even lighting depends on more than just brightness. An LED Module Light can produce more uniform illumination through:
- Proper module spacing
- Wide beam lens design
- Correct sign depth matching
- Stable chip output
- Good face diffusion material
- Reliable voltage management
For example, in shallow channel letters, a wide-angle LED Module Light can spread light more evenly across the acrylic face, reducing visible dots and dark areas.
Common factors that affect LED module performance
Although the working principle is simple, actual performance depends on several installation factors:
- Voltage drop
- Module spacing
- Sign depth
- Beam angle
- Power supply quality
- Heat dissipation
- Waterproof sealing
- Wire connection quality
This is why professional product selection and installation planning are both important. A good LED Module Light needs to be matched with a proper driver, correct spacing, and the right installation method.
What are the different types of LED modules?
There are several ways to classify LED Module Light products. Understanding these types helps buyers choose the right solution for channel letters, light boxes, outdoor signage, or special projects.
Below are the most important classifications.
LED Module Light by electrical design: constant voltage vs constant current
Constant voltage LED module light
Constant voltage modules are designed to operate at a fixed input voltage, usually 12V or 24V DC. These are the most common options in signage and advertising lighting.
Advantages:
- Easy to use
- Compatible with common LED power supplies
- Convenient for standard sign installation
- Widely available in the market
Typical applications:
- Channel letters
- Light boxes
- General signage
- Backlit displays
Constant current LED module light
Constant current modules are designed to operate with a fixed current rather than a fixed voltage. They are more often used in specialized lighting systems where precise current control is required.
Advantages:
- Better current consistency
- Potentially better stability in some engineered systems
- Useful in certain custom or high-performance applications
Typical applications:
- Specialized commercial lighting
- Engineered systems requiring strict current control
For most signage buyers, constant voltage LED Module Light products are the mainstream choice because they are easier to install and maintain.
LED Module Light by waterproof structure: injection molded vs epoxy sealed
Injection molded LED module light
Injection molded modules are made with integrated housing structures, often using ABS material. This type of LED Module Light is popular in outdoor signage because of its strong physical protection and reliable waterproof performance.
According to Huayang Lighting’s website introduction, the company offers an IP68 LED module light series injected by integrated ABS body with good adhesion, suitable for outdoor use in complex working environments.
Advantages:
- Strong sealing
- Better weather resistance
- Durable housing
- Suitable for demanding outdoor applications
Epoxy sealed LED module light
Some modules use epoxy resin for waterproof protection. The LED components are encapsulated to prevent moisture intrusion.
Advantages:
- Good waterproof capability
- Cost-effective in many applications
- Suitable for various sign projects
Considerations:
- Product quality depends on sealing materials and process control
LED Module Light by optical design: with lens vs without lens
LED Module Light with lens
A lens module is designed to spread light over a wider beam angle. This is especially useful in shallow signage and light boxes where hotspot control is critical.
Advantages:
- Wider beam spread
- More even illumination
- Reduced hotspots
- Better for shallow sign depths
Huayang Lighting specifically mentions outside injection LED module with lens as one of its product directions, which is highly relevant for signage applications.
LED Module Light without lens
Modules without lenses provide more direct light output and may be appropriate in deeper sign cabinets or projects where wider spread is less necessary.
Advantages:
- Simpler design
- Suitable for some standard or deeper installations
- Can be cost-effective depending on the application
LED Module Light by installation environment: indoor vs outdoor
Indoor LED Module Light
Indoor modules are usually used where water exposure is minimal. These may not require very high waterproof ratings.
Applications:
- Indoor signage
- Retail displays
- Decorative cabinets
- Interior branding
Outdoor LED Module Light
Outdoor modules are designed for exposure to rain, humidity, UV, and temperature changes. Waterproofing and housing quality are critical here.
Applications:
- Outdoor channel letters
- Shop signs
- Building signage
- Exterior advertising boxes
For outdoor projects, buyers often prioritize IP65, IP67, or IP68 LED Module Light products.
LED Module Light by color type
Single color LED Module Light
Common colors include:
- White
- Warm white
- Red
- Blue
- Green
- Yellow
These are widely used in standard signage and illuminated brand elements.
RGB LED Module Light
RGB modules can produce multiple colors and dynamic effects, making them suitable for decorative or programmable projects.
RGBW and customized color options
Some projects require additional white channels or custom color temperature matching for branding requirements.
LED Module Light by application
Different LED Module Light designs are optimized for different scenarios:
| Application | Recommended LED Module Type |
|---|---|
| Channel letters | Small-size, wide-angle, waterproof modules |
| Light boxes | Lens modules with wide beam spread |
| Outdoor signs | IP67/IP68 injection molded modules |
| Indoor branding | Standard constant voltage modules |
| Backlit logos | High-uniformity lens modules |
| Decorative effects | RGB or customized color modules |
Why is LED Module Light important in signage and advertising lighting?
Although the article outline focuses on definition, difference, working principle, and types, it is worth expanding on why LED Module Light has become so important in the market.
Flexibility in sign manufacturing
Unlike rigid or continuous products, an LED Module Light can be placed exactly where needed. This makes it ideal for:
- Sharp corners
- Irregular letters
- Curved logos
- Custom-shaped signs
Better serviceability
If one module fails, it can often be replaced individually. This reduces maintenance cost and downtime.
Better waterproof performance
Outdoor signage requires durable lighting. Injection-molded or sealed LED Module Light products can provide stronger protection than many less-structured alternatives.
Better commercial value
Although some alternatives may appear cheaper initially, the total lifecycle value of an LED Module Light is often better when installation, repair, and long-term reliability are considered.
How to choose the right LED Module Light for your project
Choosing the correct LED Module Light depends on several factors.
Consider the installation environment
- Indoor or outdoor?
- Dry or high-humidity?
- Exposure to UV and rain?
Consider the sign structure
- Channel letters or light box?
- Shallow or deep cabinet?
- Complex shape or straight layout?
Consider electrical requirements
- 12V or 24V?
- Power supply compatibility
- Voltage drop planning
Consider optical needs
- Need a wide beam angle?
- Need to reduce hotspots?
- Need bright and uniform sign face output?
Consider supplier capability
A reliable supplier should provide:
- Stable product quality
- Clear specifications
- Customization support
- Quality inspection
- Certifications
- After-sales service
Huayang Lighting presents itself as a manufacturer with production and sales experience in LED advertising light sources, along with quality inspection before sales, after-sales support, and customization based on client requirements.
FAQ about LED Module Light
Q1: What is an LED module light used for?
An LED Module Light is commonly used for channel letters, sign boxes, light boxes, backlit logos, retail signage, and outdoor advertising displays.
Q2: What is the difference between an LED and an LED module?
A single LED is a light-emitting component, while an LED Module Light is a complete unit that includes LED chips, circuit structure, wiring, and protective housing for direct installation.
Q3: How do LED modules work?
LED modules work by receiving low-voltage DC power, passing current through one or more LED chips, and emitting light through a protected and often optically controlled module structure.
Q4: What are the main types of LED modules?
The main types include constant voltage and constant current modules, injection molded and epoxy sealed modules, lens and non-lens modules, indoor and outdoor modules, and single-color or RGB modules.
Q5: Are LED Module Light products waterproof?
Many are. Depending on the design, LED Module Light products can have waterproof ratings such as IP65, IP67, or IP68, making them suitable for outdoor signs.
Q6: Which is better for signage, LED strip or LED Module Light?
For most channel letters, outdoor signs, and light boxes, LED Module Light is usually the better choice because of better flexibility, waterproofing, maintenance, and optical performance.
Q7: Is 12V or 24V better for LED Module Light?
Both are common. 24V often has advantages in larger installations because it reduces voltage drop over longer distances, while 12V is also widely used in standard signage.
Q8: What should I look for when buying LED Module Light?
Look for brightness stability, waterproof rating, beam angle, chip quality, housing durability, certifications, warranty, and supplier support.
Conclusion
LED Module Light is far more than a simple light source. It is a complete and application-oriented lighting solution designed to meet the real needs of signage, display, and commercial illumination projects. Compared with a single LED, an LED module provides a ready-to-install structure with wiring, protection, and often optical control. This makes it more practical for buyers who need reliable results in channel letters, light boxes, and outdoor signs.
By understanding what an LED Module Light is, how it works, the difference between an LED and an LED module, and the different types available, buyers can make more informed decisions based on brightness, waterproofing, electrical design, and installation needs.
For businesses involved in sign making, importing, wholesaling, or custom project supply, choosing the right LED Module Light can improve product quality, installation efficiency, maintenance convenience, and long-term value.
CTA: Find the Right LED Module Light for Your Next Project
If you are looking for a reliable LED Module Light supplier for signage, channel letters, light boxes, and custom advertising lighting projects, Shenzhen Huayang Lighting Technology Co., Ltd. can support your needs with practical manufacturing experience and product customization.
Huayang Lighting, founded in 2012, specializes in LED advertising light sources including LED module lights, LED strip lights, and LED neon products. The company offers outside injection LED module with lens, waterproof LED module solutions, and customized products based on customer requirements. With a focus on product quality, innovation, service, and efficiency, Huayang Lighting provides products with CE, RoHS, and other formal certifications, along with pre-sales inspection and after-sales support.
Whether you need a standard LED Module Light, an outdoor waterproof solution, or OEM/ODM customization for your market, Huayang Lighting can help you choose a product that fits your technical and commercial requirements.
Contact Huayang Lighting today to discuss your LED Module Light project, request a quotation, or explore customized solutions for signage and advertising lighting.
