Waterproof 12volt 3led Module for led Signs


1.DC12V 3dot 2835 lens module, ABS plastic cover IP68 waterproof, 30piece cooper cable, strong Conductivity,
2.light beam angle 170Degree, 9v 2835 high brightness leds used, 150 Lumen brightness.
3.cool white and other colors, 78mm*12mm*4mm size, suitable for big light box.
4. 3M back tape sticker, 1.5watt power.
  • HY-3LED-2835lens-1.5w
  • DC12V
  • 1.5w
  • 170Degree
  • white/red/green/blue/yellow/pink/orange
  • IP68
  • 5years
  • 170Degree

  • Waterproof 12volt 3led Module  for led Signs

  • feature:

  • 1)select and use TOP quanlity 2835led chip source, without spot, low light decay, good consistency for backlight  module

  • 2)Products with low power consumption, high brightness, long life, high power 1.5w, maintenance-free

  • 3)The shell is made of injection molding technology, beautiful appearance,  good cooling effect

  • 4)IP68 waterproof rating up above, this is advantage specification.

  • 5)Low voltage input, safe and reliable(DC12V)

  • 6)Cold white/red/blue/green/yellow single color

  • 7)Module 20 units as a string, LED string and hybrid circuit using a single module can be cuted

  • Application scenario

  • 1)Advertising signs, illuminqted signs ,slim boxes, plastic characters. Etc


voltage power module size light color light brightness beam angle waterproof warranty
DC12V 1.5Watt 72*18mm every single color 150lumen 170Degree IP68 5 years

led drawing:3灯设计

connect suggestion:

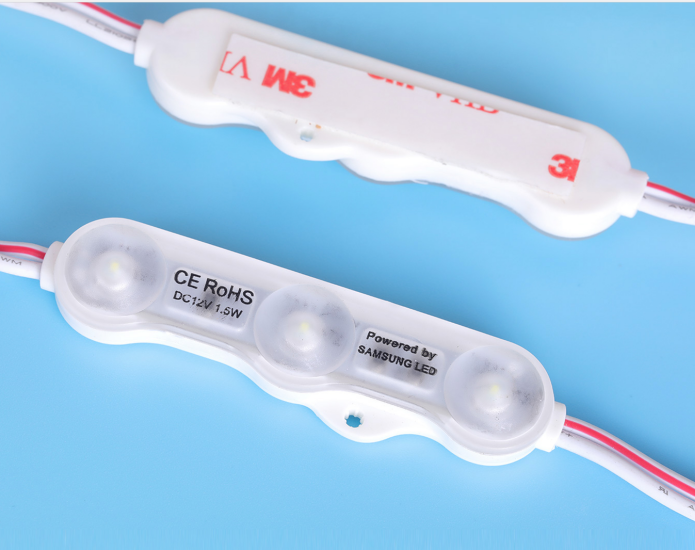

product picture:


Scenario application:



Q: Which led chips are used in this type module?

A: 60Lumen 0.5W SMD 2835 used for this type

Q:What length of the cable for this type module?

A:normally 14cm length between two modules,  but we can make any length as clients request.

Q:How many quantities module in one string?

A:20Pcs & 50 pcs in normally.  also can make the quantity as clients request, but biggest quantity is 50 pcs.

Q:How long can i get the sample?

A: need 3-5days to send sample.

Q: Do you have MOQ limit for order ?

A:Not limit the MOQ. just depend on clients demand.
